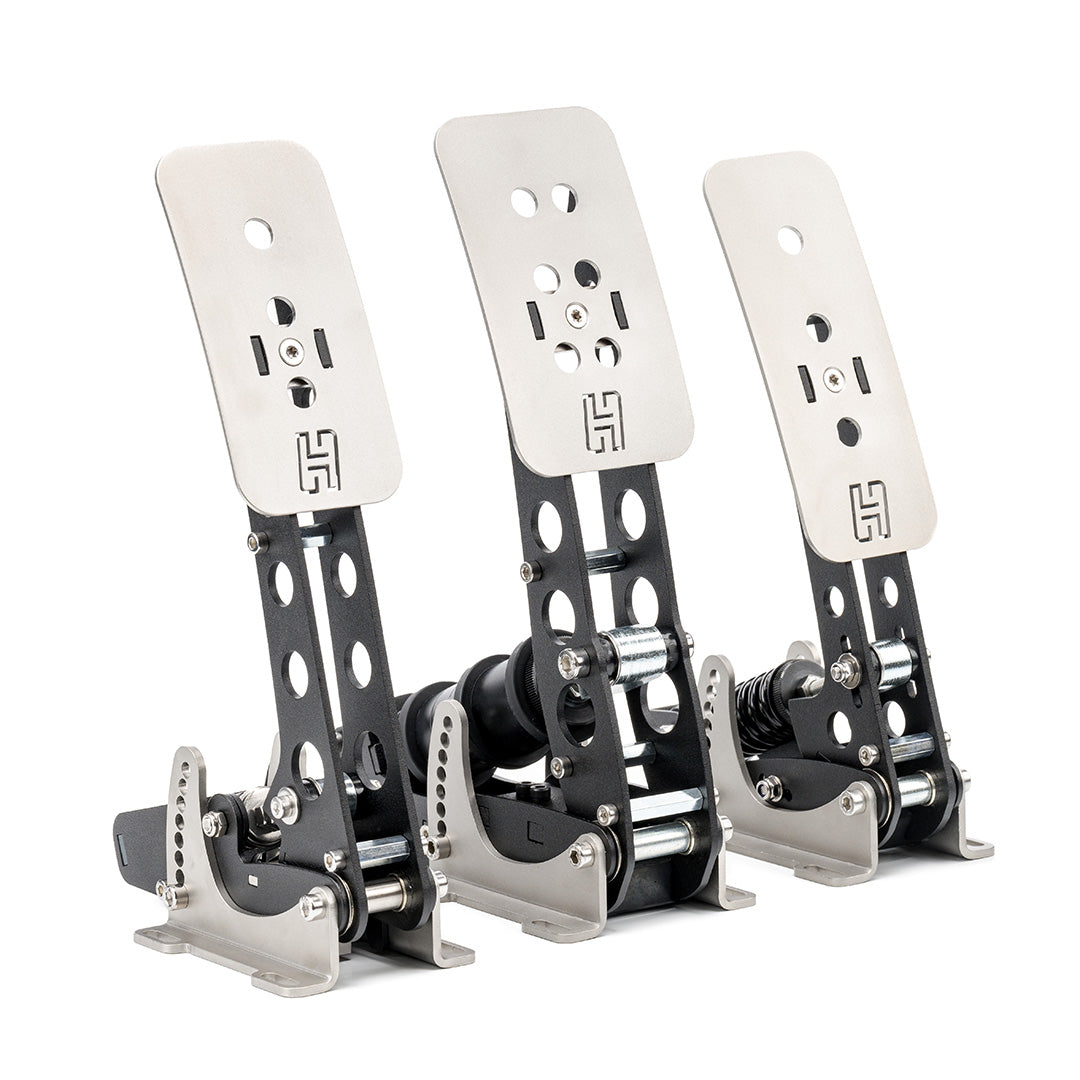

simulator pedals Heusinkveld Sprint 3-Pedal Set

simulator pedals Heusinkveld Sprint 3-Pedal SetWant to improve your lap times and race with more consistency? The Sprint pedals are perfect for you! A strong, accurate, and customizable pedal set designed to elevate your race pace. If youre looking for pedals that help you to be both quick and consistent, look no further. FEATURES Strong, Compact & Adjustable A perfect choice for both casual simracers and professional Esports drivers Unmatched Accuracy Not all load cell pedals are equal. Sprint

Want to improve your lap times and race with more consistency? The Sprint pedals are perfect for you! A strong, accurate, and customizable pedal set designed to elevate your race pace. If you’re looking for pedals that help you to be both quick and consistent, look no further.

FEATURES

Strong, Compact & Adjustable
A perfect choice for both casual simracers and professional Esports drivers

Unmatched Accuracy
Not all load cell pedals are equal. Sprint pedals have properly implemented load sensors based on mathematical design models. So you can rely on a true 1-on-1 relation between your driving inputs and the pedal output to the simulator.

Optimize Your Setup
Sprint pedals offer a wide range of adjustability options. Soft or stiff pedals, long or short travel, low or high forces, it’s your choice.

Gain a Competitive Control
Every tenth of a second counts. Heusinkveld Sprint pedals offer a realistic feeling, which enables you to improve your driving style and become more consistent and faster each lap. Fine tune your brake feeling through varying with the 6 different brake firmness choices.

Be in Control with SmartControl
With our SmartControl software you can easily configure deadzones, brake force and customize pedal output curves. You can even change key settings while driving.

Compact & Easy to Install
Made out of robust laser cut steel, Sprint pedals are able to handle high forces in a compact design. This makes Sprint pedals easy to mount in any simulator.

ABOUT THE SPRINT PEDALS

Overview
Heusinkveld Sprint are strong & highly adjustable, with 6 different brake settings. They are the perfect pedals for home-use simulators, to improve your consistency and become a quicker simracer.

Sprint pedals offer a highly customizable experience, allowing you to fine-tune your setup for the perfect balance of feel and responsiveness. With advanced load cell braking, smooth pedal travel, and robust durability, the Sprint pedals are built to withstand intense racing sessions. Whether you’re aiming for consistency or maximum performance, Heusinkveld Sprint pedals offer the reliability and precision that can take your racing to the next level.

The Heusinkveld Sprint pedals offer an incredibly responsive and precise feel, with each pedal delivering a smooth and consistent action. The brake pedal provides a solid, firm resistance that mimics the real-world sensation of braking, offering a high level of control and feedback. Sprint pedals help to elevate your skills and push your sim racing to new heights.

Mathematical models were developed to calculate pedal movement and the required force, accurately predicting how each pedal will perform in any configuration. Design tolerances have been fine-tuned to minimize play in every pedal. They are insensitive to dust and dirt and do not wear out, resulting in unmatched accuracy and durability over time. All critical pivot points feature slide bearings and have undergone automated durability tests to ensure reliable performance after one million cycles.

Adjustment Options
Each pedal has different adjustment options but some adjustments are for

Pedals:

• • Pedal angle
  • Pedal plate height


Throttle:

• • 5 pedal travel settings
  • Overall pedal force
  • Pedal spring preload

The throttle pedal gives you excellent control over any car and you’ll be able to set it up exactly to your liking.

Brake:

• • Pedal stiffness. The brake pedal has a dual stage brake system and 6 resistance settings regarding firmness.
  • Coil spring preload

Clutch:

• • Pedal force
  • Pedal spring preload

The clutch pedal features a regressive spring mechanism, which simulates a typical concave clutch curve.

Software:

• • Maximum brake force
  • Output curves
  • Deadzones

Components
The Heusinkveld Sprint 3-pedal set consists of a clutch, throttle and brake pedal.

Mounting
Each pedal is equipped with four mounting slots, allowing forwards and backwards adjustments to be made for optimal ergonomics. Because the Sprint pedals can handle relatively high operating forces (up to 65kg at the brake pedal), you must install the pedals on a very rigid base.

Possible mounting solutions are aluminum profile beams, a thick metal (drilled) plate or our Sprint Baseplate.

The following mounting materials are included:

• 12x M5x12mm bolts
• 12x M5x20mm bolts
• 12x M5 washer
• 12x M5 flanged nut

Electronics
The all new electronics have been integrated in the brake pedal. This allows for a clean setup with a minimum of wire clutter.

The controller board has received a conformal coating in order to shield it from moisture and dust. The product as a whole is CE certified and has been tested to be compliant with all applicable European EMC norms and regulations.

SPECIFICATIONS

WARRANTY

Heusinkveld gives a 24-month warranty starting from the date of delivery. Repairs and/or replacement deliveries do not create an extension of the warranty period. The warranty means that defects will be remedied free of charge within a reasonable period of time, either by repairing or replacing the products and/or parts in question. The products and/or parts replaced become the property of Heusinkveld. The warranty does not include any further right to compensation from Heusinkveld. The warranty does not cover defects resulting from:

• a. incorrect setup and/or installation;
• b. non-compliance with the (safety) regulations stated in the manual;
• c. inappropriate use;
• d. inappropriate operation;
• e. external influences, such as transport damage and impact damage;
• f. repairs and modifications not carried out by Heusinkveld;
• g. use of non-original parts. Heusinkveld does not warrant that the products are suitable for the purpose for which the Buyer wishes to use them. Under no circumstances are the products suitable for use other than in a simulator.

The products are not suitable for use on (public) roads, on a test track, or as (part of) an electric vehicle.
